Description
Air Conditioner Pipes in Pakistan

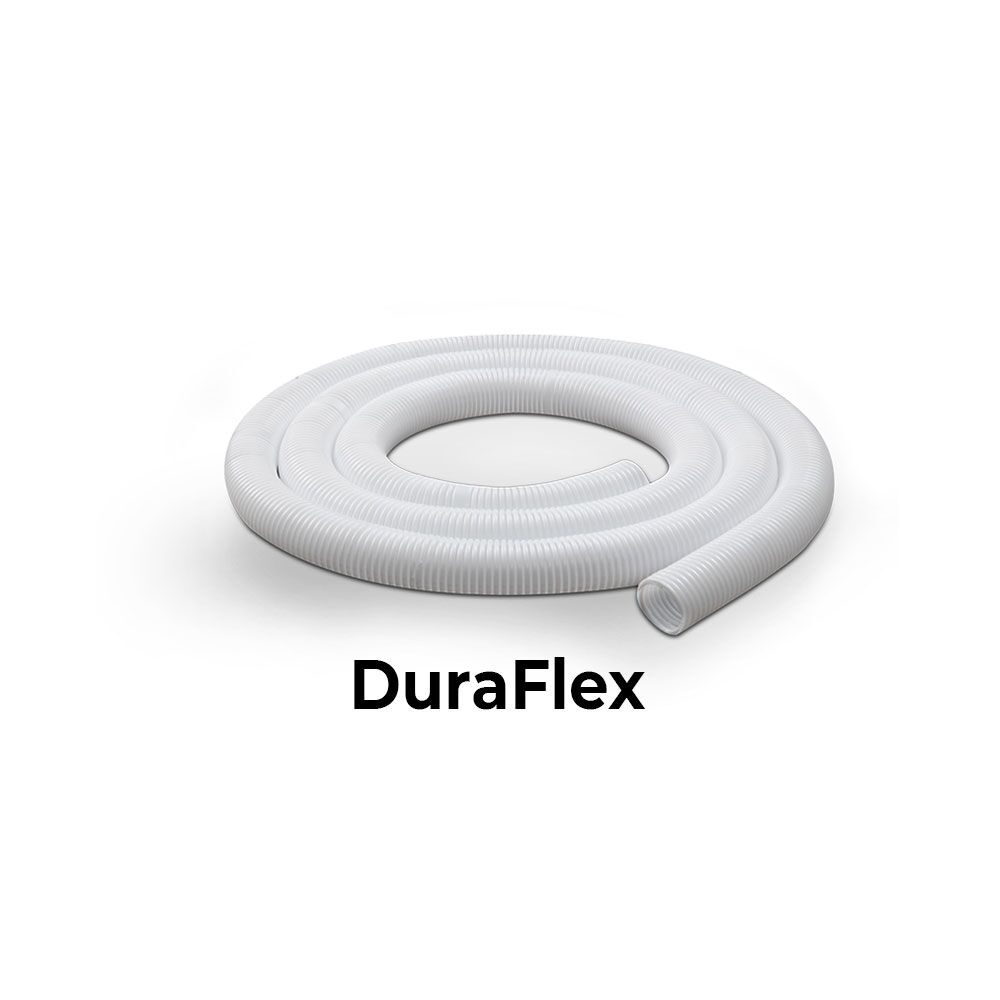

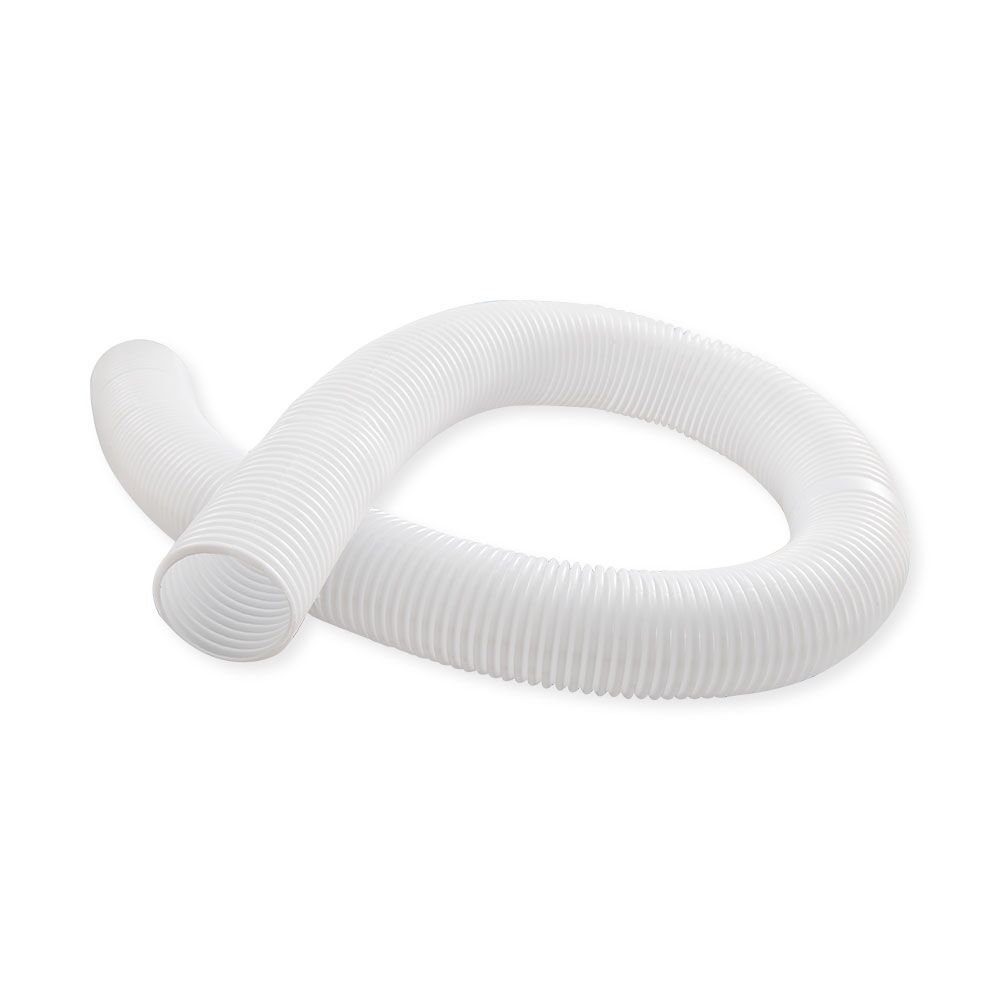

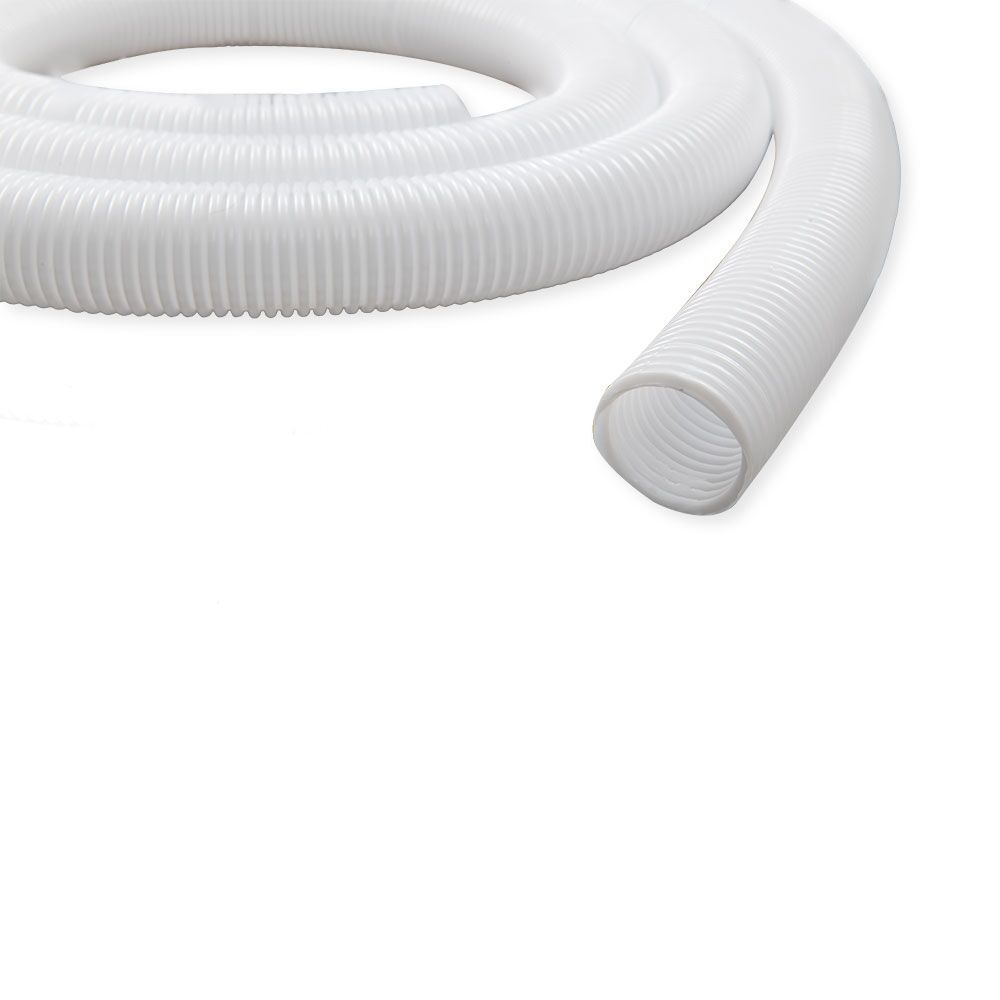

This gradual bends design makes DuraFlex Air Conditioner Pipes ideal for protecting wires around corners and bends without any need for additional fittings. DuraFlex does not require any protective paint or coating, even under the harshest conditions, and will remain free from attack by bacteria or fungi.
Advantages of AC Drain Pipe
* Lightweight and low operational cost
* Soft, flexible and easy to pull wiring
* Long-lasting and maintenance-free
* Highly resistant to corrosion
Available Range
DuraFlex is available in sizes of 1⁄2, 1⁄3, 1, 1 1⁄4, 1 1⁄2 and 2 inches. Our standard packing of DuraFlex comes in 100 and 150 rft coils and in standard colours of off-white and grey. Customized colours and packing coils can be arranged through special order.
Areas of Application
Industrial, commercial & residential buildings, main circuit, computer wiring, switchboard & panel wiring, telephone & intercom wiring, air-conditioner & chiller plant installation.
Colour Range
* White
* Grey
* White
* Grey
Dimension
| Size (Inches) | Outer Diameter (mm) | Inner Diameter (mm) | Weight/ft (grm) | |||
|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | |
| 1⁄2 | 17.0 | 17.2 | 12.0 | 12.2 | 11 | 13 |
| 3⁄3 | 20.0 | 20.2 | 15.1 | 15.2 | 15 | 17 |
| 1 | 26.0 | 26.2 | 20.0 | 20.2 | 19 | 21 |
| 1 1⁄4 | 30.5 | 30.6 | 24.2 | 24.6 | 21 | 22 |
| 1 1⁄2 | 39.5 | 40.0 | 29.2 | 29.5 | 35 | 37 |
| 2 | 52.0 | 52.2 | 44.8 | 45.0 | 37 | 40 |
