Description

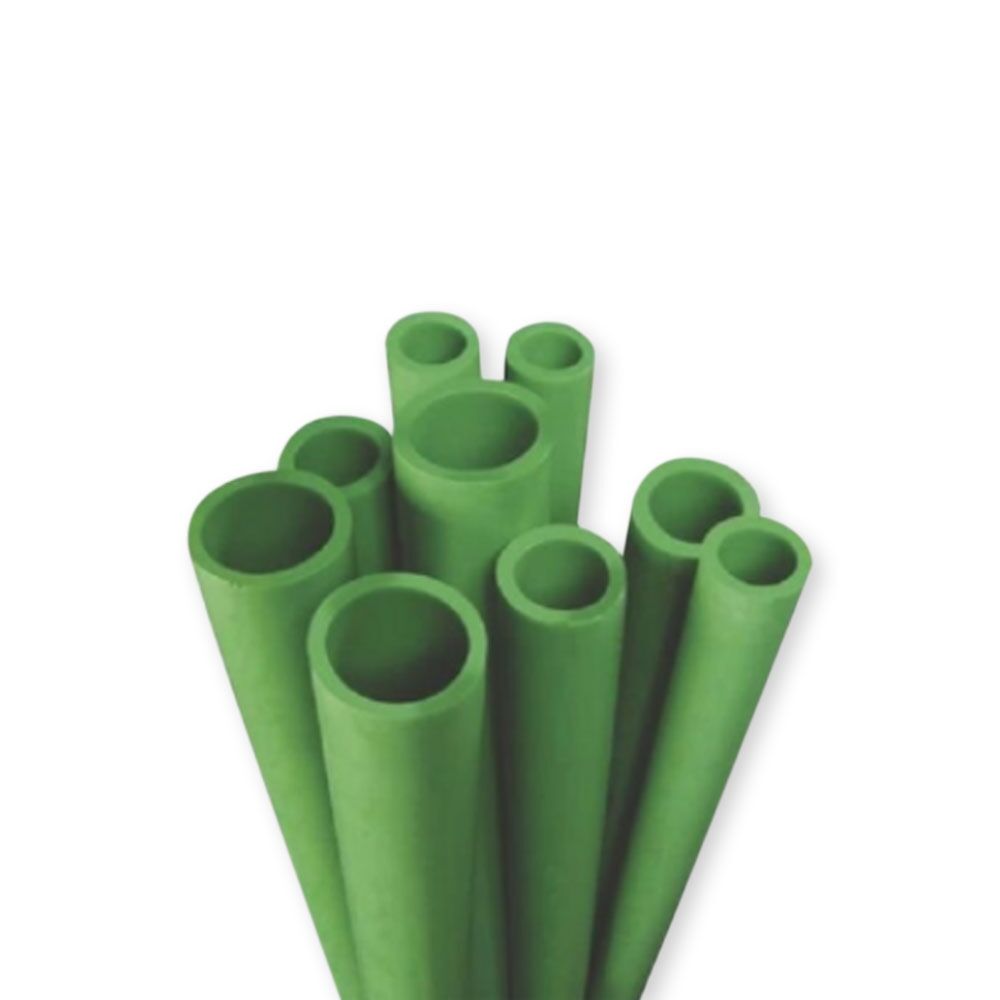

Best PPRC Pipes in Pakistan
ECO-Environment Friendly Design
Promptly Adapting German-based aesthetics and function, ensuring reliability and convenience with Adamjee best PPRC pipes in Pakistan. Its standard leafy green colour highlights that the DuraPPRC water system is absolutely eco-environment friendly and non-toxic.
Specialized Features
* High chemical resistance and absolutely leak-proof
* 100% imported raw materials
* Hygienic and environment friendly
* Low maintenance & operational cost
* Lightweight & long life
Major Areas of Applications
* Hot & cold water supply system
* Suitable for potable water, food & beverage processing applications
* Compressed air applications
* Power plant & chemical industry
* Residential apartments, public housing schemes, schools, hospitals and laboratory applications
Available Range of PPRC Pipes
* 20mm, 25mm, 32mm,
* 40mm, 50mm, 63mm,
* 75mm, 90mm, 110mm
All sizes are available in a standard length of 4 meters. Explore the wide range of Adamjee Pipes right now!
Colour Range
* Green with Red strips
Dimensions
Standard: DIN 8077/8078
| Size (mm) | Outer Diameter (mm) | WALL THICKNESS | |||
|---|---|---|---|---|---|
| PN – 16 | PN – 20 | ||||
| Min | Max | Min | Max | ||
| 20 | 20.0~20.3 | 2.8 | 3.3 | 3.4 | 4.0 |
| 25 | 25.0~25.3 | 3.5 | 4.1 | 4.2 | 4.9 |
| 32 | 32.0~32.3 | 4.4 | 5.1 | 5.4 | 6.2 |
| 40 | 40.0~40.4 | 5.5 | 6.3 | 6.7 | 7.6 |
| 50 | 50.0~50.5 | 6.9 | 7.8 | 8.3 | 9.4 |
| 63 | 63.0~63.6 | 8.6 | 9.7 | 10.5 | 11.8 |
| 75 | 75.0~75.7 | 10.3 | 11.6 | 12.5 | 14.0 |
| 90 | 90.0~90.9 | 12.3 | 13.8 | 15.0 | 16.7 |
| 110 | 110.0~111.0 | 15.1 | 16.9 | 18.3 | 20.4 |
