Schedule 40 Pipe Fittings

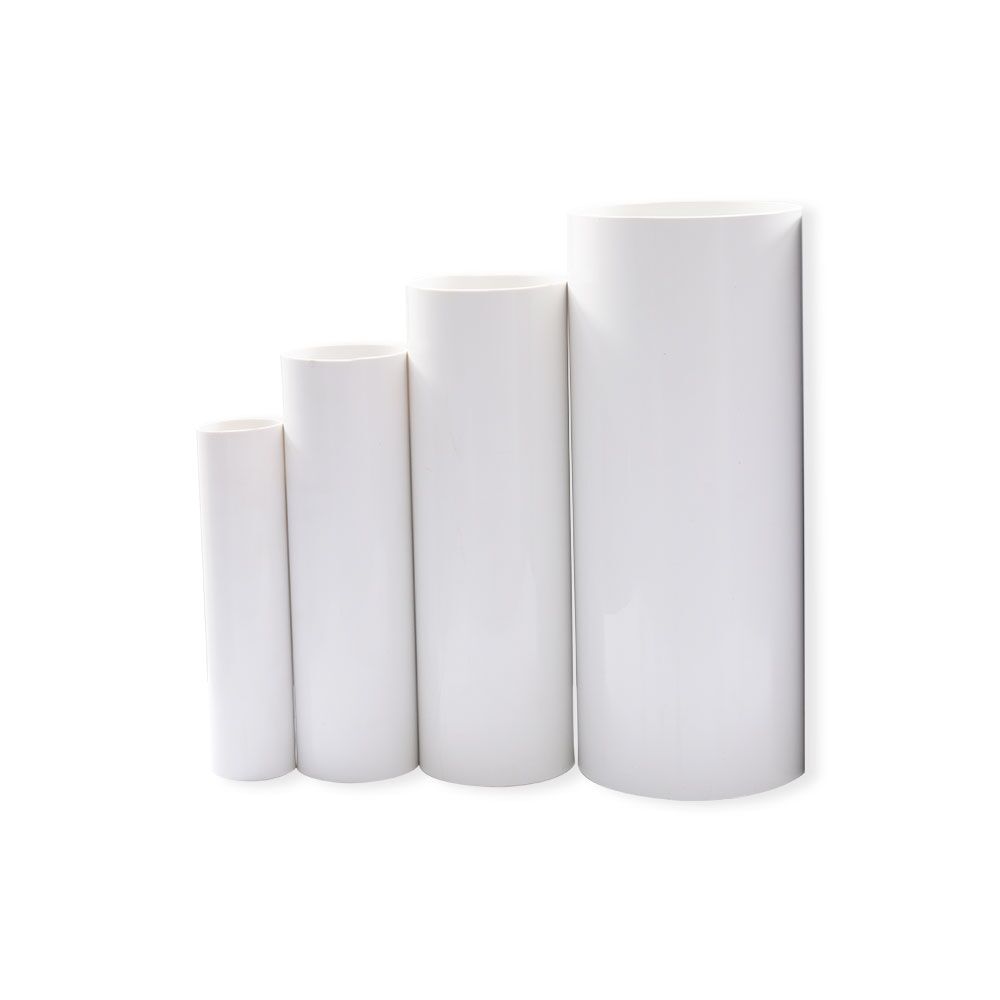

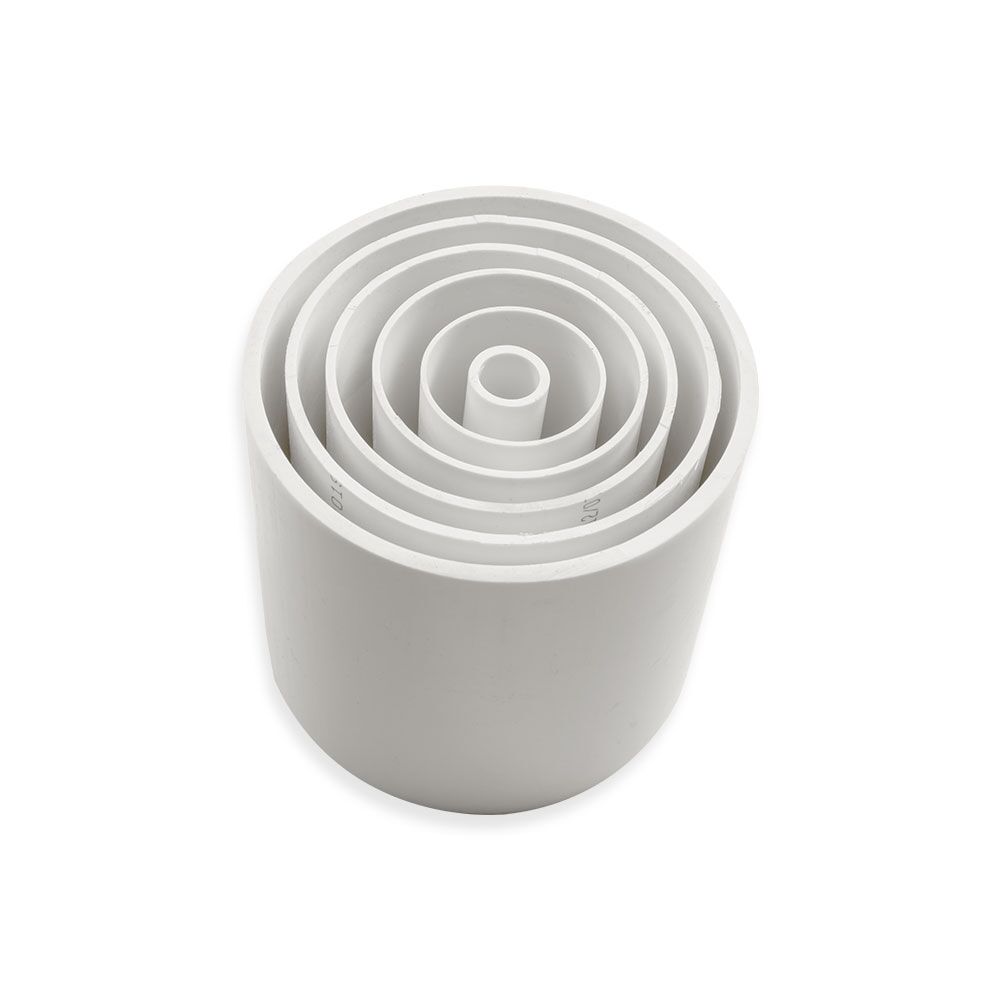

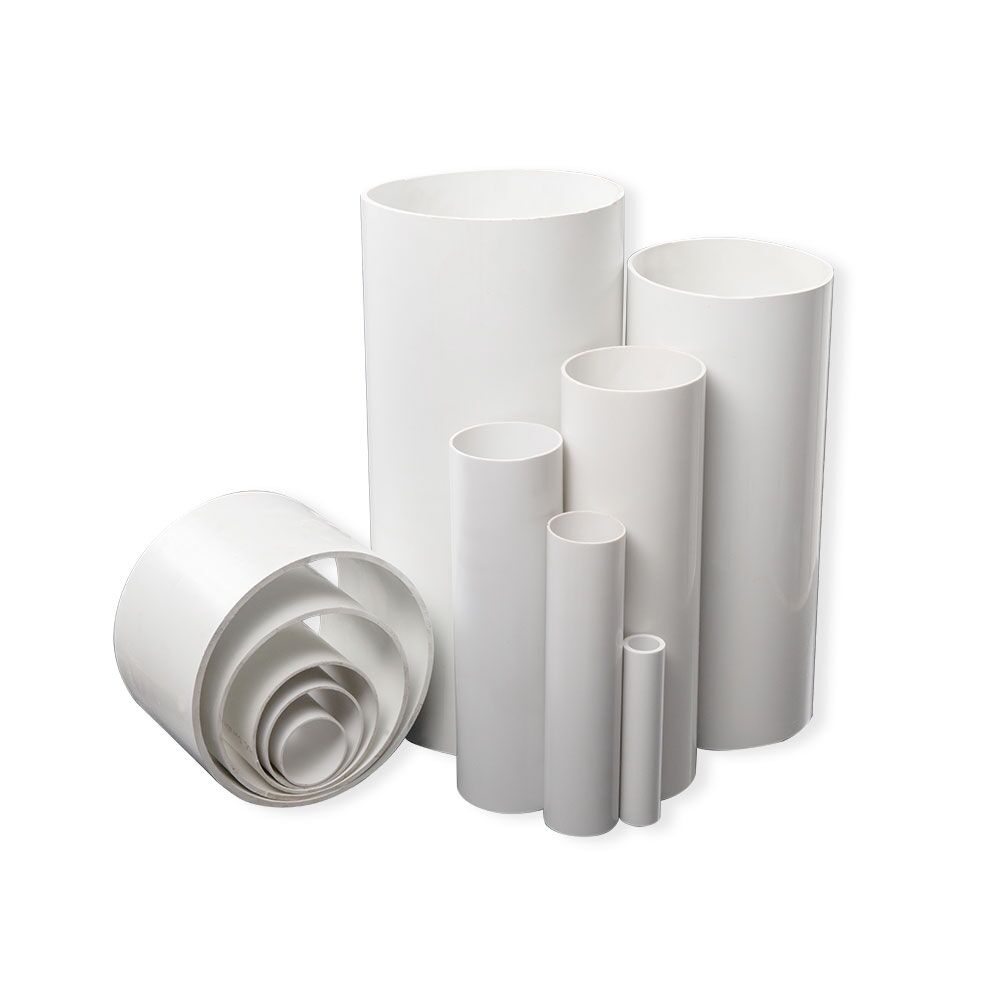

Dura Schedule 40 pipes have been manufactured for piping of drinking water in residential, commercial, and industrial water distribution systems. It has been formulated from a special lead-free PVC compound to ensure safety. Lead poisoning can cause cancer, brain damage, birth defects, kidney failure, high blood pressure, and in high doses is toxic to all organs of the body. Adamjee Dura schedule 40 PVC fittings stand out as the only service using a lead-free formula.
DuraSchedule-40 Fitting
Elbow 45 Elbow 90, Tee, Socket, Wye, Plug Elbow, Plug Tee, P-Trap, Reducer Wye, Tee & Socket, Floor Drain, Male-Female & Tee.
Major Areas of Application
* Portable water applications
* RO plants applications
* Industrial & residential usage
Advantages of Schedule 40 Pipes
* Lead-free and non-toxic
* Lightweight & long life
* Smooth internal surface & continuous flow
* Low maintenance & easy to install
* Resistant to abrasion, chemicals and corrosion
* ECO environment friendly & self-smothering
Available Range
1⁄2, 3⁄4, 1, 1 1⁄4, 1 1⁄2, 2, 3 and 4 inches are available in a standard length of 6 meters.
Colour Range
* White
Dimensions
Standard: ASTM D-1785
| Size (Inches) |
Outer Diameter (mm) |
Wall Thickness (mm) |
Weight/ft | Pressure Rating |
||
|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Grams | PSI | |
| 1⁄2 | 21.34 | 21.5 | 2.8 | 3.25 | 75~90 | 600 |
| 3⁄4 | 26.67 | 26.7 | 2.9 | 3.35 | 100~125 | 480 |
| 1 | 33.40 | 33.45 | 3.4 | 3.8 | 110~160 | 450 |
| 1 1⁄4 | 42.16 | 42.2 | 3.6 | 4.0 | 200~230 | 370 |
| 1 1⁄2 | 48.26 | 48.3 | 3.7 | 4.2 | 240~280 | 330 |
| 2 | 60.32 | 60.35 | 4.0 | 4.4 | 320~350 | 280 |
| 3 | 88.7 | 89.1 | 5.5 | 6.1 | 620~680 | 260 |
| 4 | 114.1 | 114.5 | 6.0 | 6.7 | 900~980 | 220 |
