Description

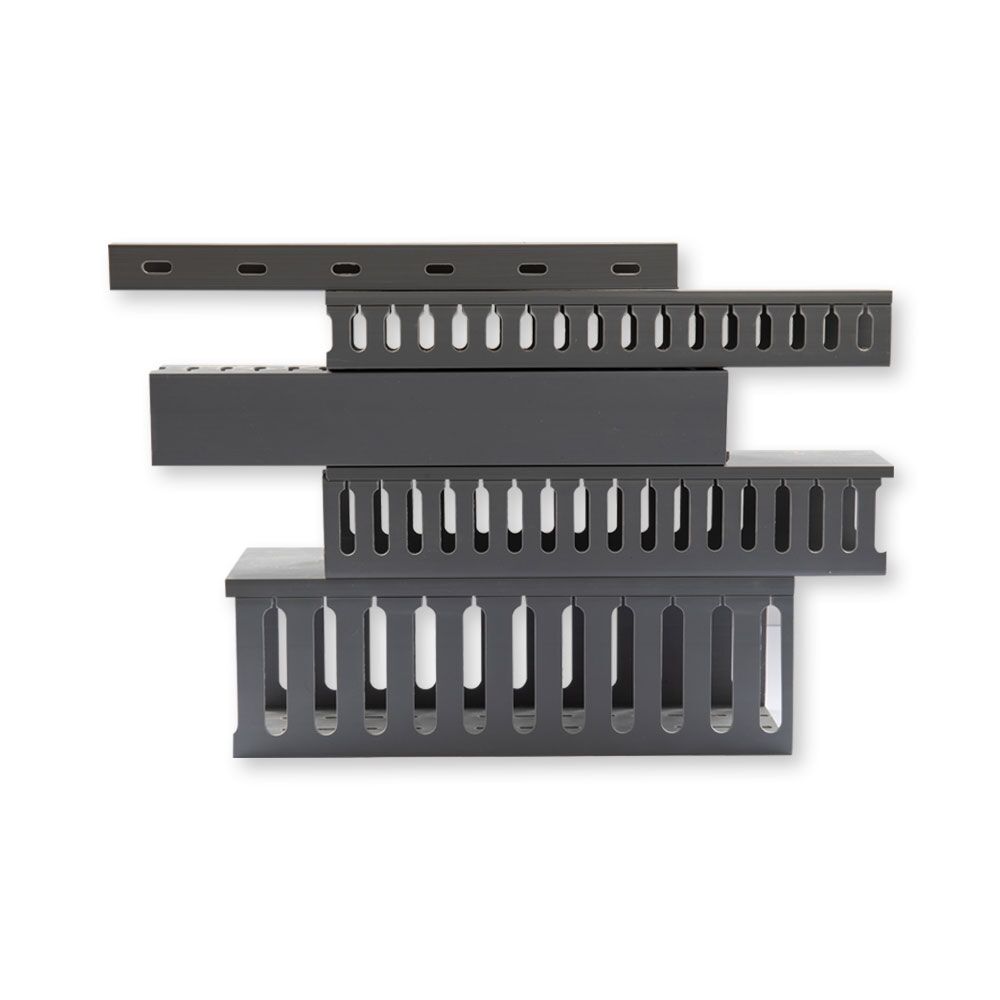

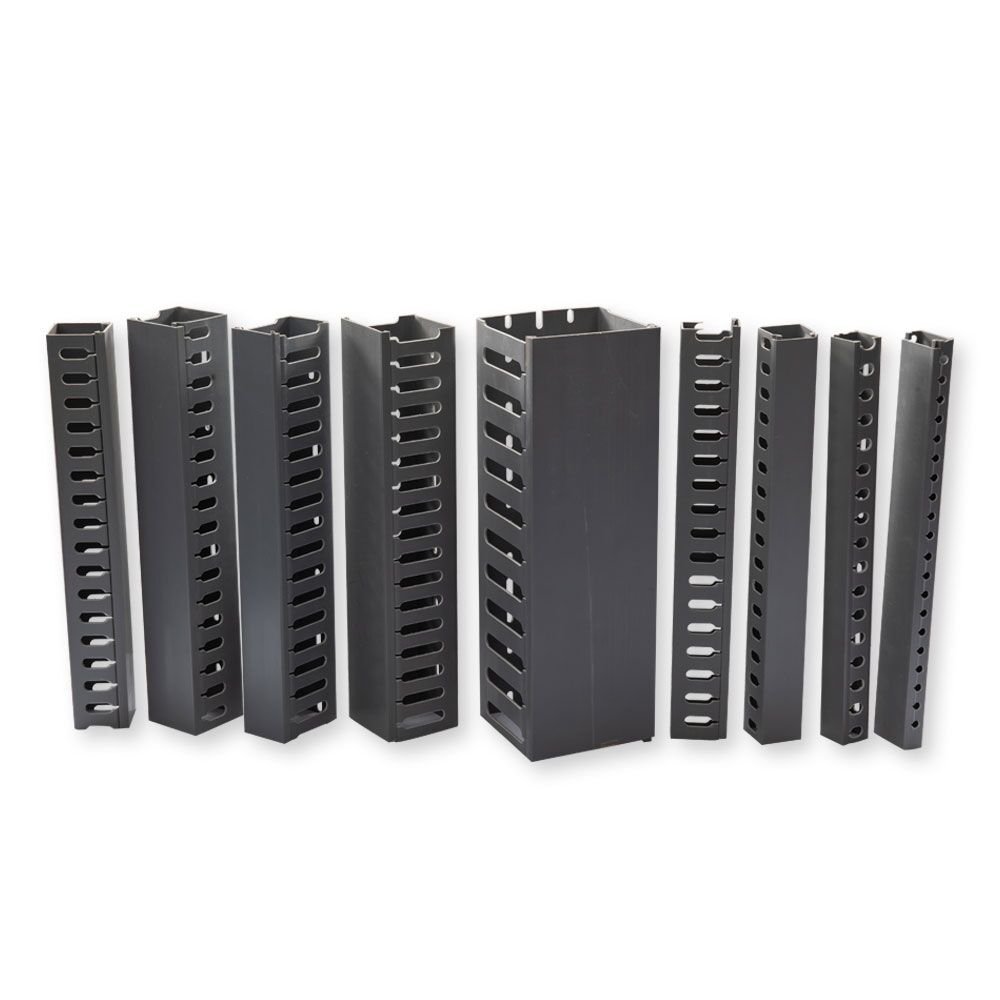

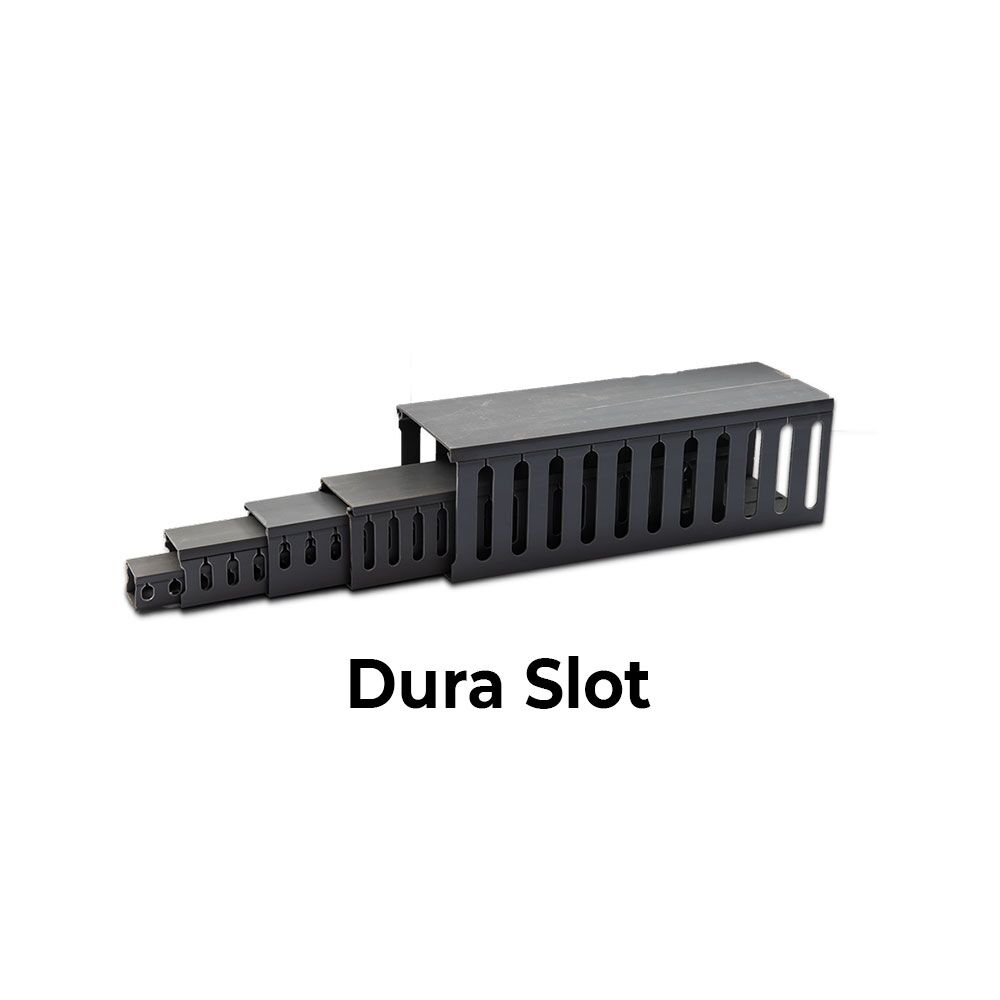

PVC Slotted Cable Duct
Adamjee dura slot is designed to provide superior ducting while simplifying your cable management. Featuring parallel holes along the sidewalls to offer easy cutting in wire installation. Whether you use this electrical cable duct for power distribution, control, and communication, our PVC slotted cable duct effectively conceals them.
Our cable ducts are very light and are appropriate in environments where multiple small cables are likely to be installed and the number of wires increased or decreased. In addition, they offer flexibility to meet your changing needs during the process of concealing open wiring systems – simply lay the cables in the tray rather than pulling through a pipe.
Our PVC slotted cable duct is certified with standard bodies, making them an excellent investment for your construction projects.
Dimension & Cable Duct Sizes
| Sr.# | Item Sizes (Height x Width) | Standard Length | |
|---|---|---|---|
| DuraDuct (White) | DuraSlot (Grey) | ||
| 1 | 10 x 25 mm | 3 meter | – |
| 2 | 16 x 16 mm | 3 meter | – |
| 3 | 16 x 25 mm | 3 meter | 2 meter |
| 4 | 16 x 38 mm | 3 meter | 2 meter |
| 5 | 16 x 60 mm | 3 meter | 2 meter |
| 6 | 25 x 25 mm | 3 meter | 2 meter |
| 7 | 25 x 38 mm | 3 meter | 2 meter |
| 8 | 25 x 60 mm | 3 meter | 2 meter |
| 9 | 33 x 33 mm | 3 meter | 2 meter |
| 10 | 40 x 40 mm | 3 meter | 2 meter |
| 11 | 40 x 60 mm | 3 meter | 2 meter |
| 12 | 50 x 50 mm | 3 meter | 2 meter |
| 13 | 60 x 40 mm | 3 meter | 2 meter |
| 14 | 60 x 60 mm | 3 meter | 2 meter |
| 15 | 60 x 80 mm | 3 meter | 2 meter |
| 16 | 80 x 60 mm | 2 meter | 2 meter |
| 17 | 80 x 80 mm | 2 meter | 2 meter |
| 18 | 100 x 100 mm | 2 meter | 2 meter |
| 19 | 150 x 150 mm | 2 meter | 2 meter |
uPVC Material Specification
| Specific Gravity | 1.50 |
| Tensile Strength (N/mm2) | 49.00 |
| Elongation at Break (%) | 25.00 |
| Shore D Hardness | 82.00 |
| Impact Strength (IZOD. J/m) | 85.00 |
| Vicat Softening Point (Deg. Cent) | 80.00 |
