PVC Duct Channel

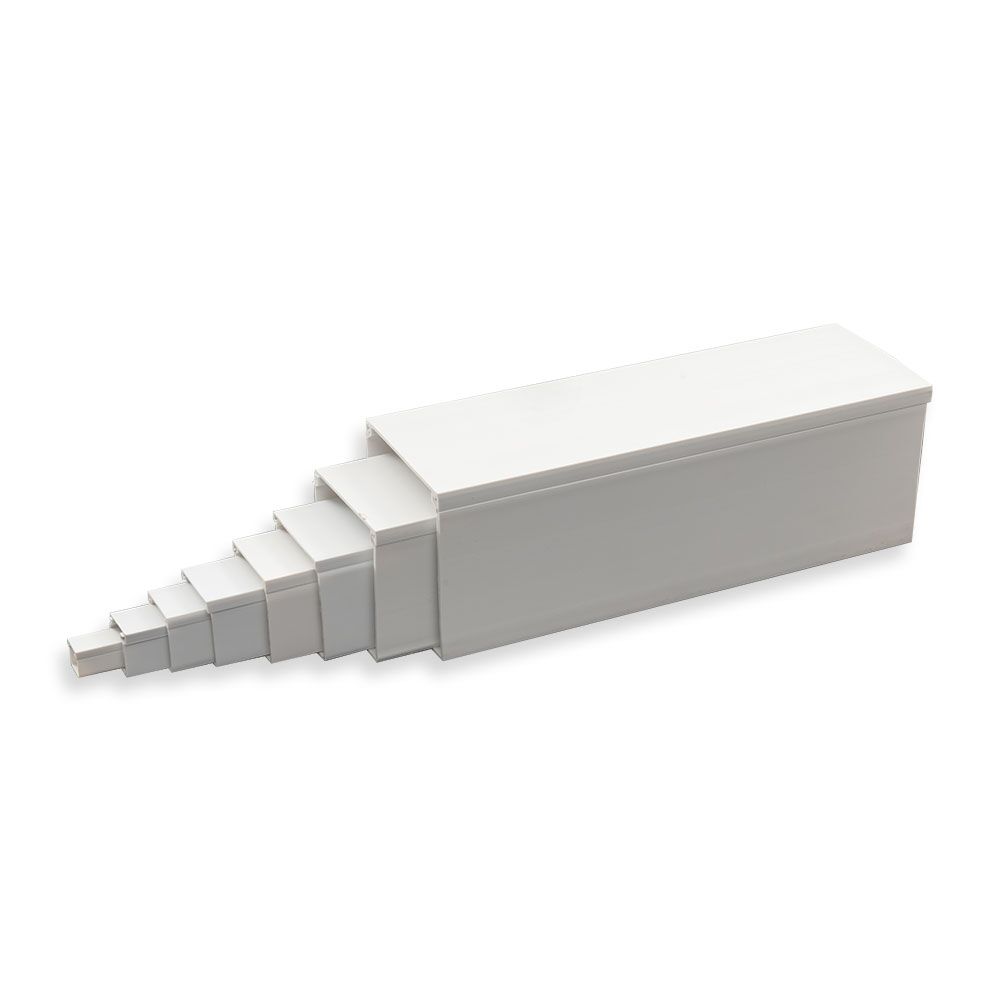

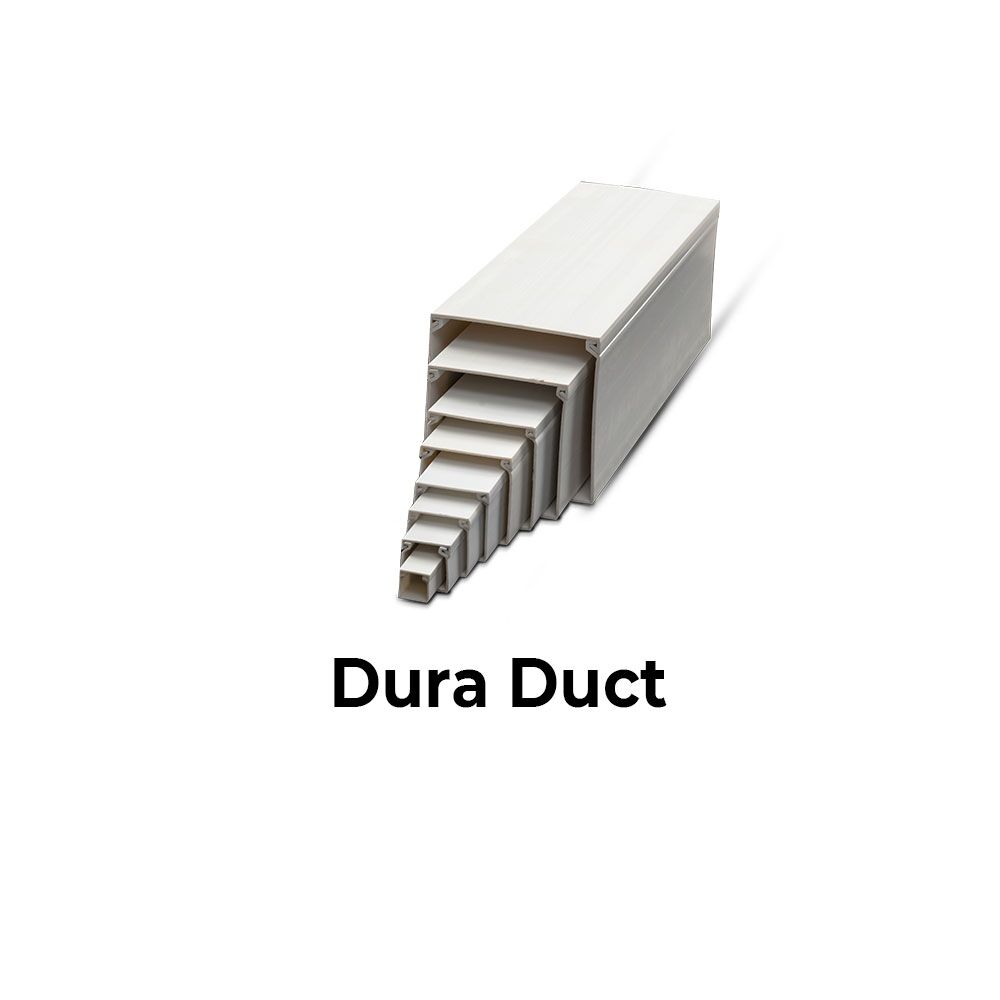

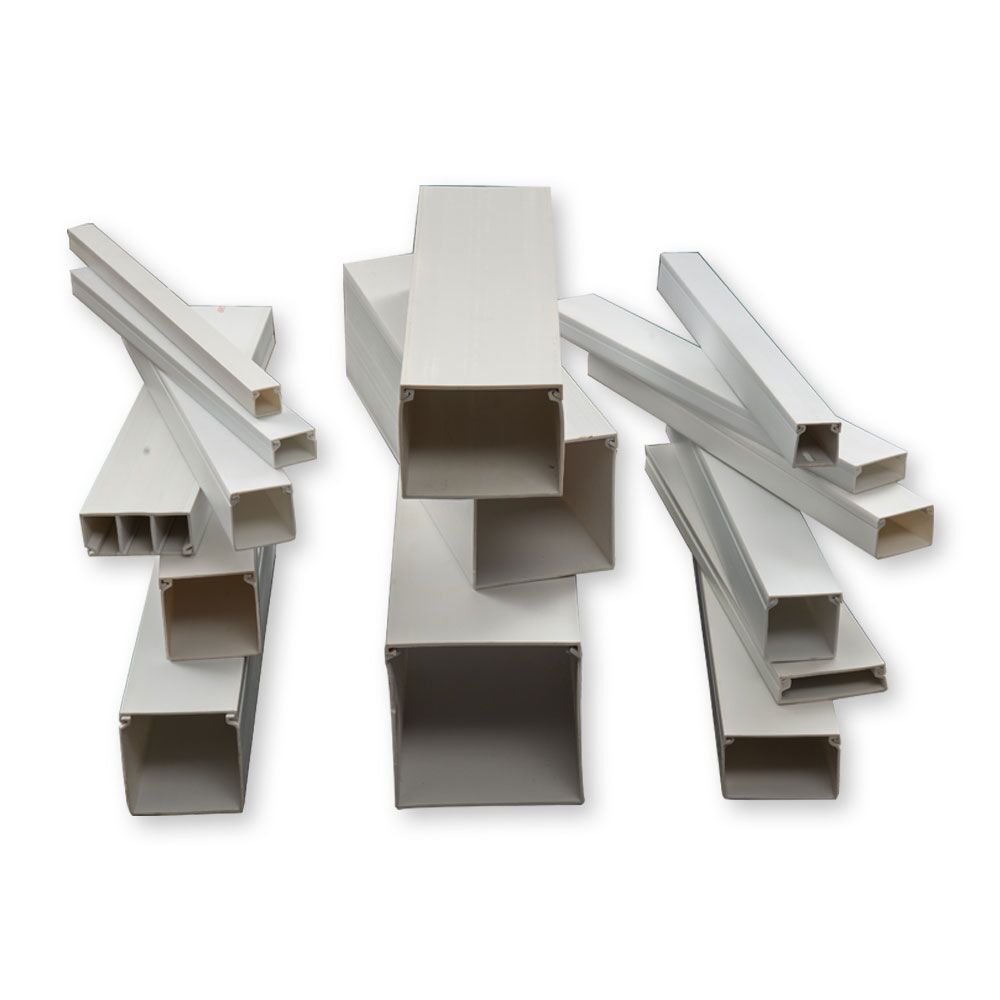

Adamjee PVC Duct channel (channel patti) effectively and economically conceals your wiring, protects the wires from damage, and prevents your wiring from being an eyesore. It is durable and convenient to use, yet beautiful in craftsmanship. DuraDuct consists of a U-shaped channel body with a snap-on cover, which can be removed, as and when desired, to access the wires for installation, repairs, or maintenance.

  • Economical

  • Protects the Wires

  • U-shaped Channel Body

Description

Solid Wall Wire Duct Pakistan

Adamjee PVC Duct channel (channel patti) is the safest open wiring option because it is made from uPVC material. Unlike other materials, synthetic or natural, our Solid wall wire duct system does not support combustion or corrosion therefore if a short circuit occurs the ducting will not burn and spread the fire. Its anti-corrosive element makes it durable in all weather conditions, from salty, sea air to snow-packed mountains, making DuraDuct amazingly easy to maintain.
Adamjee PVC Duct channel (PVC Channel Patti) gives you two clear benefits: secure concealment of the wiring and an aesthetically appealing environment. Our slotted base Solid wall wire Duct system ensures an easy installation process. The number of wires can easily be increased or decreased as your needs change. This flexibility to meet your changing needs is part of what makes DuraDuct the leading method of concealing open wiring systems. DuraDuct is certified with standard bodies.
Available Colours
* White
* Grey

Areas of Application: Skirting, Main Circuit, Computer Wiring Switch Board / Panel, Sheathed Cable Wiring, Telephone & Intercom Wiring, Air-Conditioner / Chiller Plant Installation etc.

Dimension

Sr.# Item Sizes (Height x Width) Standard Length
DuraDuct (White) DuraSlot (Grey)
1 10 x 25 mm 3 meter
2 16 x 16 mm 3 meter
3 16 x 25 mm 3 meter 2 meter
4 16 x 38 mm 3 meter 2 meter
5 16 x 60 mm 3 meter 2 meter
6 25 x 25 mm 3 meter 2 meter
7 25 x 38 mm 3 meter 2 meter
8 25 x 60 mm 3 meter 2 meter
9 33 x 33 mm 3 meter 2 meter
10 40 x 40 mm 3 meter 2 meter
11 40 x 60 mm 3 meter 2 meter
12 50 x 50 mm 3 meter 2 meter
13 60 x 40 mm 3 meter 2 meter
14 60 x 60 mm 3 meter 2 meter
15 60 x 80 mm 3 meter 2 meter
16 80 x 60 mm 2 meter 2 meter
17 80 x 80 mm 2 meter 2 meter
18 100 x 100 mm 2 meter 2 meter
19 150 x 150 mm 2 meter 2 meter

uPVC Material Specification

Specific Gravity1.50
Tensile Strength (N/mm2)49.00
Elongation at Break (%)25.00
Shore D Hardness82.00
Impact Strength (IZOD. J/m)85.00
Vicat Softening Point (Deg. Cent)80.00
