Description

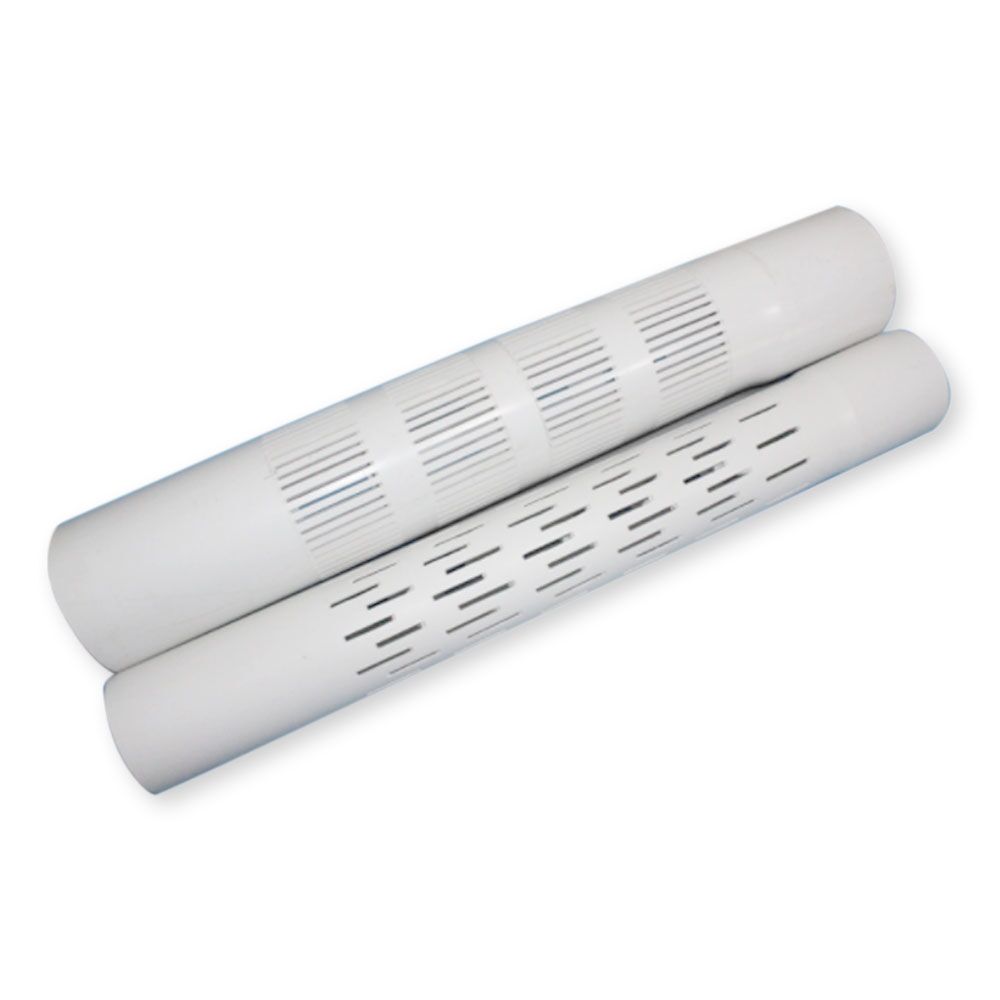

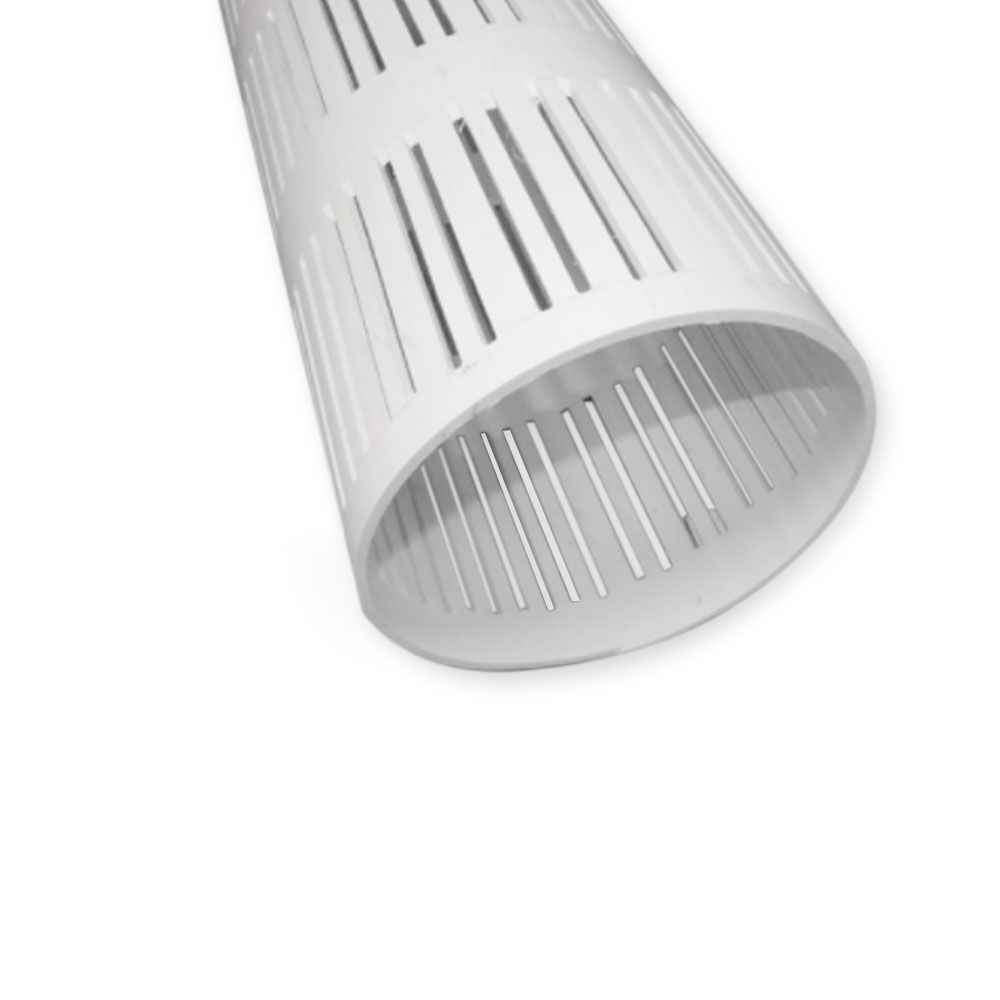

PVC Pipes for Tubewell in Pakistan
Now offering eco-friendly and recyclable plastic pipe for Tubewell constraints. Our casing and screen pipes (filter) with male and female joints and vertical slots ensure that no/minimum seepage of ground contaminants occurs when water to be pumped is admitted through the strainer in the lower lengths of the pipes. Dura Tubewell pipe has been highly successful in irrigating thousands of hectares of land in Pakistan with its highly innovative design. Our wide range of sizes and distribution network helps us meeting specific needs of PVC pipes for Tubewell in all small and large (SL) agriculturalists.
Advantages of Tubewell Pipes
* Smooth internal surface provides excellent hydraulic characteristics
* Easy to handle and install due to its low weight as compared to steel pipes
* Non-corrosion and chemicals resistant
* The joints have good tensile strengths
* Non-conductivity of electricity
* Resistant to organic growth
Range of Sizes
3″, 4″, 5″, 6″ and 7″ diameters are available in standard lengths of 3, 4 and 6 meters.
Colour
* White
Dimensions
Standard: BS-3503, P/S-3051
| Size (mm) | Outer Diameter (mm) | Class-B (mm) | Class-C (mm) | Class-D (mm) | Class-E (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 3″ | 88.7 | 89.1 | 2.9 | 3.4 | 3.5 | 4.1 | 4.6 | 5.3 | 5.7 | 6.6 |
| 4″ | 114.1 | 114.5 | 3.4 | 4 | 4.5 | 5.2 | 6 | 6.9 | 7.3 | 8.4 |
| 5″ | 140 | 140.5 | 3.8 | 4.4 | 5.5 | 6.4 | 7.3 | 8.4 | 9 | 10.4 |
| 6″ | 168 | 168.5 | 4.5 | 5.2 | 6.6 | 7.6 | 8.8 | 10.2 | 10.8 | 12.5 |
| 8″ | 218.8 | 219.4 | 5.3 | 6.1 | 7.8 | 9 | 10.3 | 11.9 | 12.6 | 14.5 |
| 10″ | 272.6 | 273.4 | 6.6 | 7.6 | 9.7 | 9.7 | 12.8 | 14.8 | 15.7 | 18.1 |
| 12″ | 323.4 | 324.3 | 7.8 | 9 | 11.5 | 11.5 | 15.2 | 17.5 | 18.7 | 21.6 |
